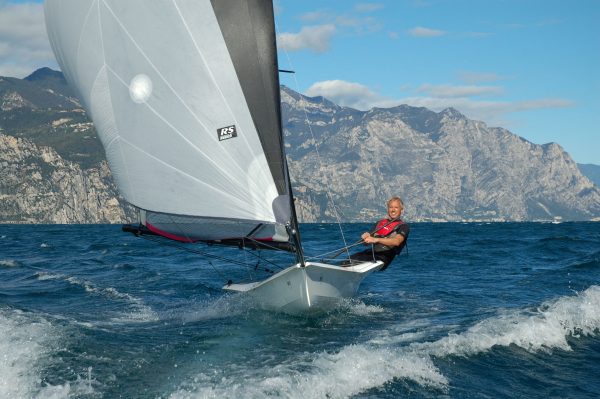

RS 100



Who is a RS 100 Sailor – A sailor who is looking for a modern high performance single handed dinghy. A boat that exhilarating to sail. a boat is technical, but has a easy learning curve. A typical Laser* sailor would feel at home with the RS 100



Hull



The RS100 hull is built using an epoxy GRP composite sandwich construction for light weight, stiffness and a long competitive life.



The shape is easily driven with a reasonably fine bow and sufficient waterline width further aft to give the stability desired. Flared topsides give reserve buoyancy as the boat heels, and the moulded in wings add to this. Spray rails on the chines give excellent water release and also a drier ride.



Foils



After much consultation a pivoting centreboard and rudder were chosen for their user friendliness. Launching and recovery are easy and the risk of significant damage through grounding is largely eliminated.



Cockpit



Having paid considerable attention to the wing and cockpit design, we’re pleased to report that so far most people think the RS100 is just about the most comfortable hiking boat they’ve ever sailed.



The mainsheet jammer is well forward in the cockpit, allowing smooth transition in light wind tacks and gybes, without digging the stern.



Vang and Cunningham controls are lead to the sides of the wings and the centreboard has a simple uphaul / downhaul system.



Spars



The carbon fibre mast is in two main parts for easy transport on a car roof or in a 20′ shipping container. In addition a removable bottom stump adjusts the mast length for the 8.4 or 10.2 m2 sails.



Shrouds, but no forestay, means the rig can work automatically upwind. The shrouds stop the rig bending forwards under spinnaker loads downwind ? this is important to keep the bow up and reduce nose diving without the need for a super-stiff mast which would be heavier, less responsive and costly.



A compression strut vang works on the same principle as the excellent RS300 system, with a roller on the top end which runs down mast. This is easy to adjust and highly effective.



Sails



The early response to the RS100 from sailors around the world was incredible and we quickly realised that both big and small sailors really want this boat to work for them.



Having looked in detail at the ways to broaden the competitive weight range the RS100 has two mainsail size options. A width adjustable performance equalisation system would have added considerable cost and meant that light sailors had to carry a lot of lead in the boat. We don’t think this is what the RS100 should be about.



Two mainsail sizes (as per standard Laser and Radial) keep the boat simple and suit a wide weight range. The indications are that this class should soon grow to big numbers, so splitting the fleet will not be a problem.



The asymmetric spinnaker has a big chute beneath the foredeck for quick hoists and drops. The lack of a forestay and the mast reasonably well aft, mean that the spinnaker has a huge amount of space to blow through very easily when gybing.





*Laser is a resistered trademark of Laser Performance





Ocean Freight $665.00

Dealer Prep $360.00

SKU: RS 100 Category:
